Light Curtain Safety
Light Curtain Safety Distance and Machine Safeguarding
Light Curtain Safety Distance and Machine Safeguarding
Light Curtain Safety Distance and Machine Safeguarding

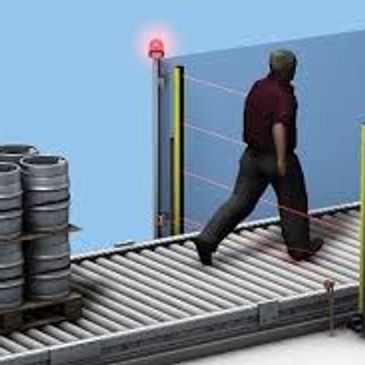

Safety light curtains are widely used in manufacturing and automation environments to protect employees from hazardous machine motion while allowing efficient interaction with equipment. These presence-sensing devices create an optical sensing field that stops hazardous motion when a person enters the protected area.
However, for light cu
Safety light curtains are widely used in manufacturing and automation environments to protect employees from hazardous machine motion while allowing efficient interaction with equipment. These presence-sensing devices create an optical sensing field that stops hazardous motion when a person enters the protected area.
However, for light curtains to function properly they must be installed at a safe distance from the hazard so the machine can stop before a person can reach the danger zone.
This principle is addressed in ANSI B11 machine safety standards, which require safeguarding systems to account for machine stopping time, safety device response time, and the approach speed of a person toward the hazard.
ANSI B11 and R15.06 Safety Distance Requirements
Light Curtain Safety Distance and Machine Safeguarding
Light Curtain Safety Distance and Machine Safeguarding
Proper safety distance calculations are critical for effective safeguarding. Standards such as ANSI B11 and ANSI/RIA R15.06 for industrial robot systems provide guidance for determining the minimum safe distance between a presence-sensing device and hazardous machine motion.
These calculations consider several factors including machine st
Proper safety distance calculations are critical for effective safeguarding. Standards such as ANSI B11 and ANSI/RIA R15.06 for industrial robot systems provide guidance for determining the minimum safe distance between a presence-sensing device and hazardous machine motion.
These calculations consider several factors including machine stopping performance, total system response time, and the distance a person could travel before the machine stops.
When these factors are not properly evaluated, a light curtain may be installed too close to the hazard, leaving employees exposed to moving machine components before the safeguarding system can stop the machine.
Expert Light Curtain Safety Evaluations
Light Curtain Safety Distance and Machine Safeguarding
Expert Light Curtain Safety Evaluations
Vector-Safety works with manufacturers, automation integrators, and engineering teams to evaluate machine safeguarding systems and ensure that light curtains are properly applied and integrated into machine safety designs.
Our team performs machine safety risk assessments and safeguarding evaluations aligned with ANSI B11 and ANSI/RIA R15
Vector-Safety works with manufacturers, automation integrators, and engineering teams to evaluate machine safeguarding systems and ensure that light curtains are properly applied and integrated into machine safety designs.
Our team performs machine safety risk assessments and safeguarding evaluations aligned with ANSI B11 and ANSI/RIA R15.06 guidance, helping organizations verify that protective devices provide effective protection in real production environments.
Through our involvement with A3 robotics safety initiatives and industry standards development, we help companies implement safeguarding solutions that protect employees while supporting efficient automation and machine operation.
Calculating Light Curtain Safety Distance
Determining the proper installation distance for a safety light curtain requires evaluating the total stopping performance of the machine and safeguarding system. Safety distance calculations typically consider the machine stopping time, response time of the safety device and control system, and the approach speed of a person toward the h
Determining the proper installation distance for a safety light curtain requires evaluating the total stopping performance of the machine and safeguarding system. Safety distance calculations typically consider the machine stopping time, response time of the safety device and control system, and the approach speed of a person toward the hazard. In many machine safeguarding applications, standards such as ANSI B11 reference calculation methods similar to the formula S = (K × T) + C, where S represents the minimum safety distance, K represents the assumed human approach speed, T represents the total stopping time of the machine and safety system, and C represents additional safety distance factors related to the detection capability of the sensing device. These values are determined by measuring actual machine stopping performance, evaluating the response time of the safeguarding system, and considering how employees interact with the machine. Proper evaluation ensures that the safety device will stop hazardous motion before a person can reach the danger zone.
